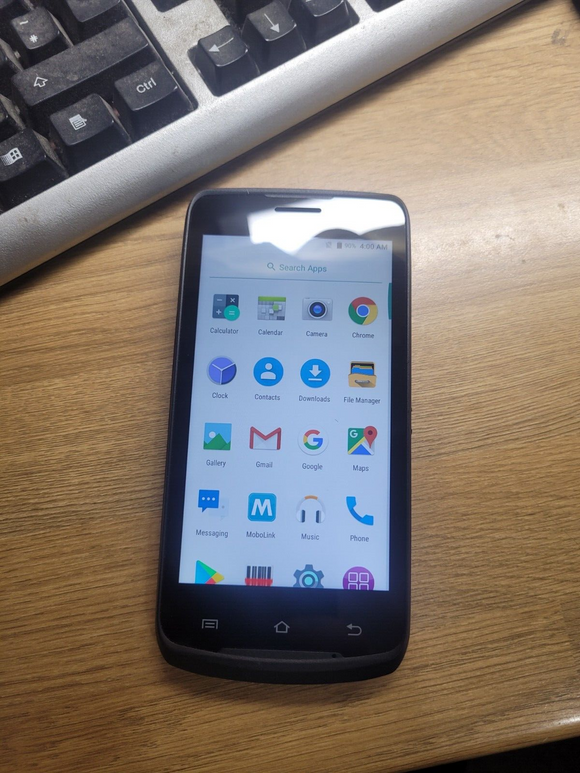

Unitech EA502 Handheld Rugged 5" Android Mobile Computer & Scanner

CPU 1.4GHz, Qualcomm 8917 Quad core

Memory 2GB DDR RAM 16GB ROM

OS Android 7.1 Enhanced security by preventing 3rd party data collection (without GMS).

 Languages Multi-language

Others Input Chinese/ English, supports handwriting and soft keyboard.

 Indicator LEDs, Vibrator

Display 5.0 inch TFT-LCD HD (720 x 1280) color screen, Gorilla Glass 3. Ultra sensitive capacitive touch screen, compatible with gloves and supports wet resistance.

 Communication USB Micro

 USB OTG Yes, over Micro

USB POGO PIN Charging via cradle and USB client

WLAN 802.11 a/b/g/n/ac

 Bluetooth Bluetooth 4.1

 WWAN 4G FDD-LTE(B1, B2, B3, B7, B8, B20, B28A, B28B) 3G UMTS/HSDPA/HSPA/HSPA+ ( 900, 1900,2100MHz ) 4G FDD-LTE B1,B2,B4,B7,B5,B20,B28A,B28B 3G UMTS/HSDPA/HSPA/HSPA+ ( 850,1900, 2100MHz ) 2G GSM/EDGE/GPRS( 850,1900 ) 4G FDD LTE B1,B3& TDD B38,39,40,41 3G UMTS/HSDPA/HSPA/HSPA+ ( 900,2100 MHz ) CDMA EV-DO Rev.A (800MHz), Band 34, 39

Senors Proximity sensor, light sensor and G-sensor

Buttons Side SCAN button x 2 (Left / Right), User-defined function button (programmable key), Volume switch button (+ / -), ON / OFF button.

Environmental Operating temperature -10°C to +50°C

Storage temperature –20°C to +70°C

Charging Temperature 0°C to 40°C

 Relative Humidity 5% ~ 95% (non-condensing)

Drop Specification 1.5m to concrete

Sealing IP67

Audio Microphone, speaker and 3.5mm audio jack

 Expansion Slot Micro SD/TF x 1(maximum of 32 GB), Micro SIM x 2

Device supported MDM SOTI, 12Manage and MoboLink

 Camera/Photos/Video

 2MP front camera

 8MP rear camera with LED flash and auto-focus function

Symbologies

 2D Imager

 1D/2D All major 1D and 2D codes

 RFID HF/NFC

 Frequency 13.56Mhz

 Support: ISO14443A/B,

 ISO15693 standard,

 Supports NFC

Enclosure

 Dimension 158 mm x 76.2 mm x 11.5 mm

Weight 210g

 Regulatory Approvals

 CE, R&TTE, NCC, CCC, VCCI
